| ブランド名: | RUYA |
| Moq: | 1セット |
| 価格: | 交渉可能 |
| 配達時間: | 3ヶ月 |
| 支払条件: | T/T |

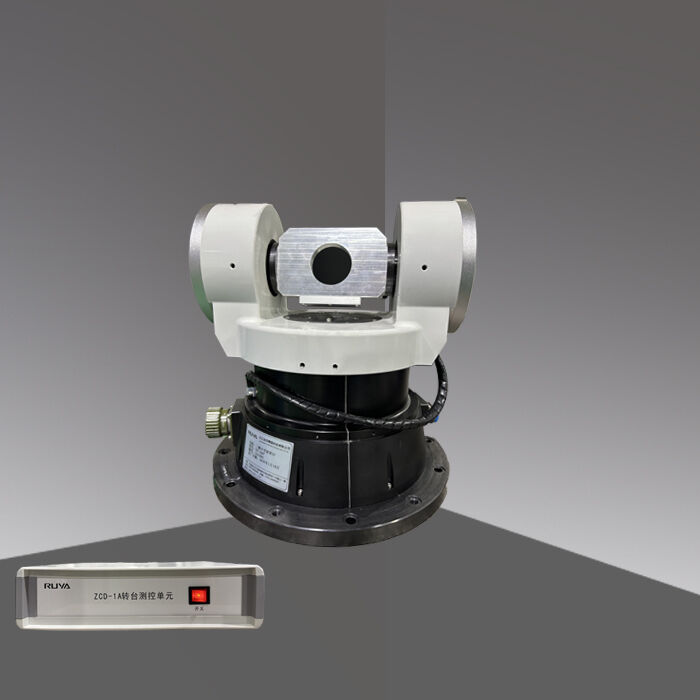

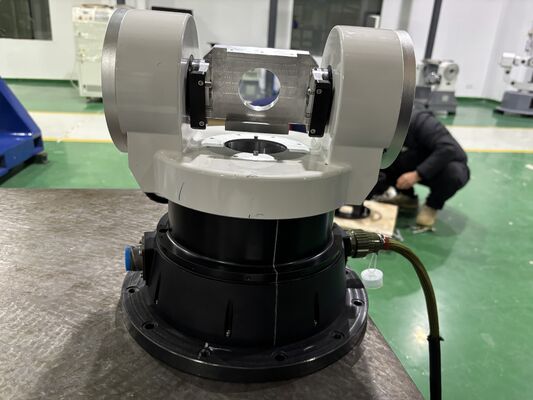

The 2D Hollow Rate Table is a high-end scientific research instrument that integrates high-precision angular positioning with an innovative structural design. Its defining feature is a through-hole situated at the center of the turntable body; while enabling simultaneous 2D rotation around both the pitch and azimuth axes, this design provides an unobstructed physical channel for optical paths, probes, or cables.
| Parameter | Azimuth Axis | Pitch Axis |
|---|---|---|
| Rotation Range | 360° | 360° |
| Hollow Diameter | 60 mm | >15 mm |
| Angular Accuracy | ±2″ | ±2″ |
| Repeatability | ±1″ | ±1″ |
| Resolution | 0.05″ | 0.05″ |
ビデオ
|
|
| ブランド名: | RUYA |
| Moq: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 木箱 |
| 支払条件: | T/T |
The 2D Hollow Rate Table is a high-end scientific research instrument that integrates high-precision angular positioning with an innovative structural design. Its defining feature is a through-hole situated at the center of the turntable body; while enabling simultaneous 2D rotation around both the pitch and azimuth axes, this design provides an unobstructed physical channel for optical paths, probes, or cables.
| Parameter | Azimuth Axis | Pitch Axis |
|---|---|---|
| Rotation Range | 360° | 360° |
| Hollow Diameter | 60 mm | >15 mm |
| Angular Accuracy | ±2″ | ±2″ |
| Repeatability | ±1″ | ±1″ |
| Resolution | 0.05″ | 0.05″ |
