| ブランド名: | RUYA |
| Moq: | 1セット |
| 価格: | 交渉可能 |
| 配達時間: | 2〜3か月 |
| 支払条件: | T/T |

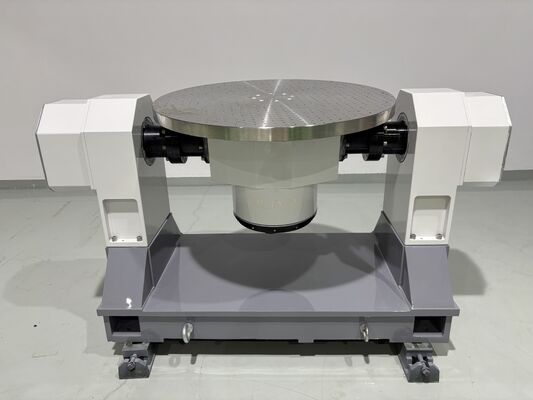

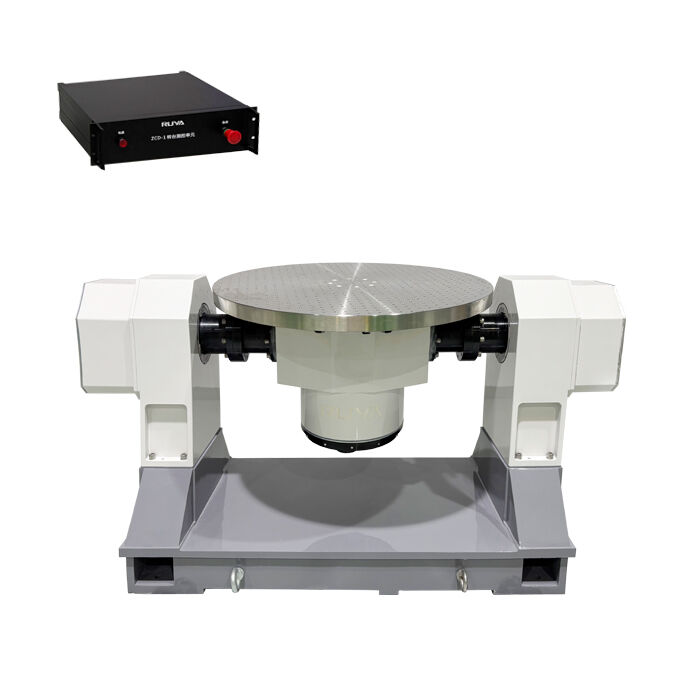

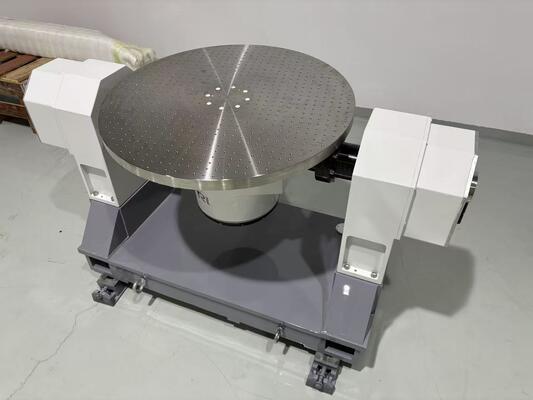

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop
Product Description
The 2D micro stepping turntable has two degrees of motion freedom in azimuth (X) and pitch (Y). It is a tabletop two-dimensional precision test equipment, mainly used for testing and calibration of inertial devices and components, such as fiber optic gyroscopes and inertial measurement units (IMUs).
Product Parameters
|
Specification |
||
|
1 |
Load Weight |
160Kg |
|
2 |

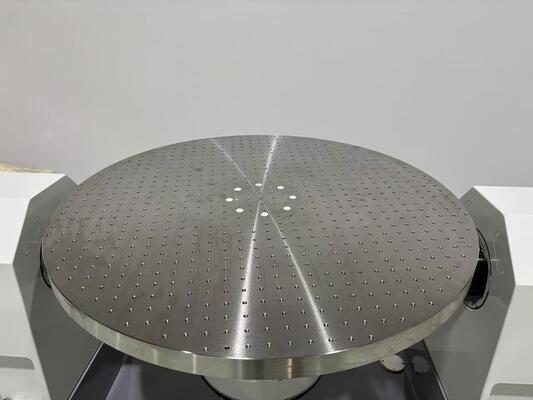

Table Diameter |
Ф805mm |
|
3 |
Table Flatness |
0.02mm |
|
4 |
Table Runout |
0.02mm |
|
5 |
Rotary Accuracy Of Dual-Axis |
±2″ |
|
6 |
Perpendicularity Of Dual-Axis |
±10″ |
|
7 |
Intersection Of Dual-Axis |
Ф0.5mm diameter ball |
|
8
|
Positioning Error Of Angular Position
|
outer frame:±2″； |
|
inner frame:±2″； |
||
|
9 |
Positioning Repeatability Of Angular Position |
±2″ |
|
10
|
Rate Range
|
inner frame:0.001°/s~20°/s； |
|
outer frame:0.001°/s~20°/s； |
||
|
11
|
Rate Accuracy
|
ω≤1°/s , 2×10-3 (1° average) |
|
1°/s≤ω<10°/s , 2×10-4 (10° average) |
||
|
ω≥10°/s , 2×10-5 (360° average) |
||
|
12 |
Working Temperature Range |
-55°C~＋80°C |
Our customers
