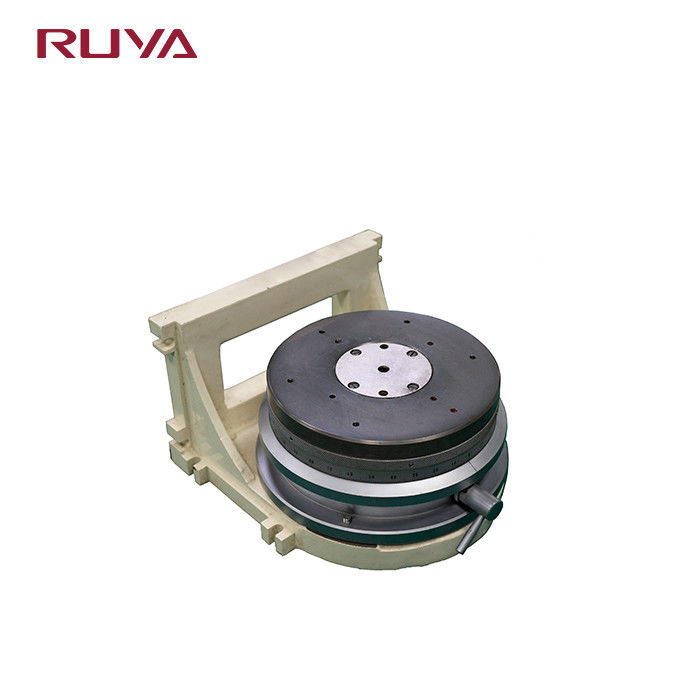

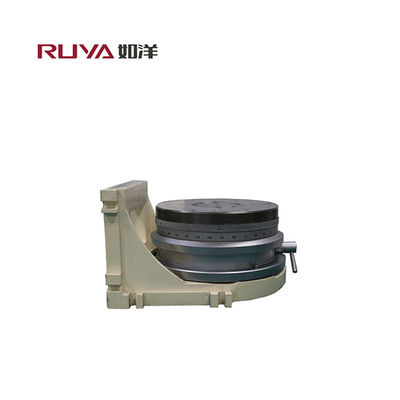

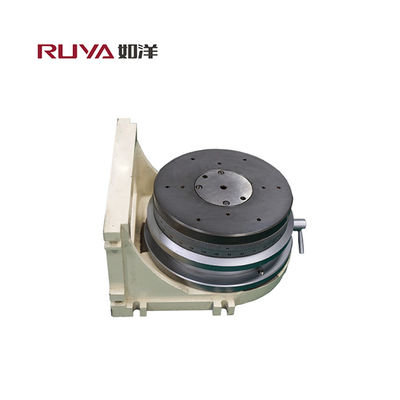

Multi-tooth Indexing Table
Product Description
The multi-tooth indexing table is a precision instrument for angle measurement, which can be used as an angle reference for measurement and as an indexing device for precision machining. It is used together with an photoelectric autocollimator to detect high-precision angle devices such as multi-faceted prisms with an angle base of 360°/n (n is the number of teeth), angle block gauges, and optical prisms . When it is used as an indexing device, it can process precision parts with high angle requirements (such as: hole position, vertical plane, parallel plane, etc.) on ordinary milling, boring, grinding and other machine tools. The subdivision and combined differential of the multi-tooth indexing table also allow for high-precision arbitrary angle measurements.
Product Parameters
|
Product |
Model |
Table Diameter (mm) |
External Dimension (mm) |
Accuracy |
Angle Measurement Repeatability |
Load Capacity (kg) |
Weight (kg) |
|
360-tooth vertical multi-tooth indexing table |
DFT-360A |
Φ205 |
Φ235×83 |
0.2″ 0.5″ |
0.06″0.12″ |
30 |
20 |
|
small size 360-tooth vertical multi-tooth indexing table |
DFT-360X |
Φ108 |
Φ140×60 |
0.3″ 0.5″ |
0.12″ |
10 |
4 |
|
small size 360-tooth vertical and horizontal multi-tooth indexing table |
WDFT-360X |
Φ108 |
Φ140×80 |
0.3″vertical 0.5″horizontal |
0.12″ |
10 |
5 |
|
middle size 360-tooth vertical multi-tooth indexing table |
DFT-360D |
Φ140 |
Φ180×83 |
0.2″ 0.5″ |
0.06″0.12″ |
20 |
8 |
|
middle size 360-tooth vertical and horizontal multi-tooth indexing table |
WDFT-360E |
Φ160 |
Φ180×100 |
0.3″vertical 0.5″horizontal |
0.12″ |
20 |
10 |
|
391-tooth multi-tooth indexing table |
DFT-391A |
Φ205 |
Φ235×83 |
0.2″ 0.5″ |
0.06″0.12″ |
30 |
20 |
|
small size 391-tooth multi-tooth indexing table |
DFT-391X |
Φ108 |
Φ140×60 |
0.3″ 0.5″ |
0.12″ |
10 |
4 |
|
small size 391-tooth vertical and horizontal multi-tooth indexing table |
WDFT-391X |
Φ100 |
Φ140×80 |
0.3″vertical 0.5″horizontal |
0.12″ |
10 |
5 |
|
middle size 391-tooth vertical and horizontal multi-tooth indexing table |
WDFT-391E |
Φ160 |
Φ180×100 |
0.3″vertical 0.5″horizontal |
0.12″ |
20 |
10 |
|
middle size 391-tooth vertical multi-tooth indexing table |
DFT-391G |
Φ140 |
Φ180×83 |
0.2″ 0.5″ |
0.06″0.12″ |
20 |
8 |
|
8mm-hole 552-tooth vertical multi-tooth indexing table |
DFT-552A |
Φ200 |
Φ235×88 |
0.2″ 0.5″ |
0.06″0.12″ |
30 |
20 |
|
middle size 552-tooth vertical and horizontal multi-tooth indexing table |
WDFT-552E |
Φ160 |
Φ180×100 |
0.3″vertical 0.5″horizontal |
0.12″ |
20 |
10 |
|
552-tooth vertical multi-tooth indexing table with taper shaft |
DFT-552F |
Φ207 |
Φ235×100 |
0.2″ |
0.06″ |
30 |
20 |
|
720-tooth vertical multi-tooth indexing table |
DFT-720A |
Φ205 |
Φ235×100 |
0.2″ 0.5″ |
0.06″0.12″ |
30 |
20 |
